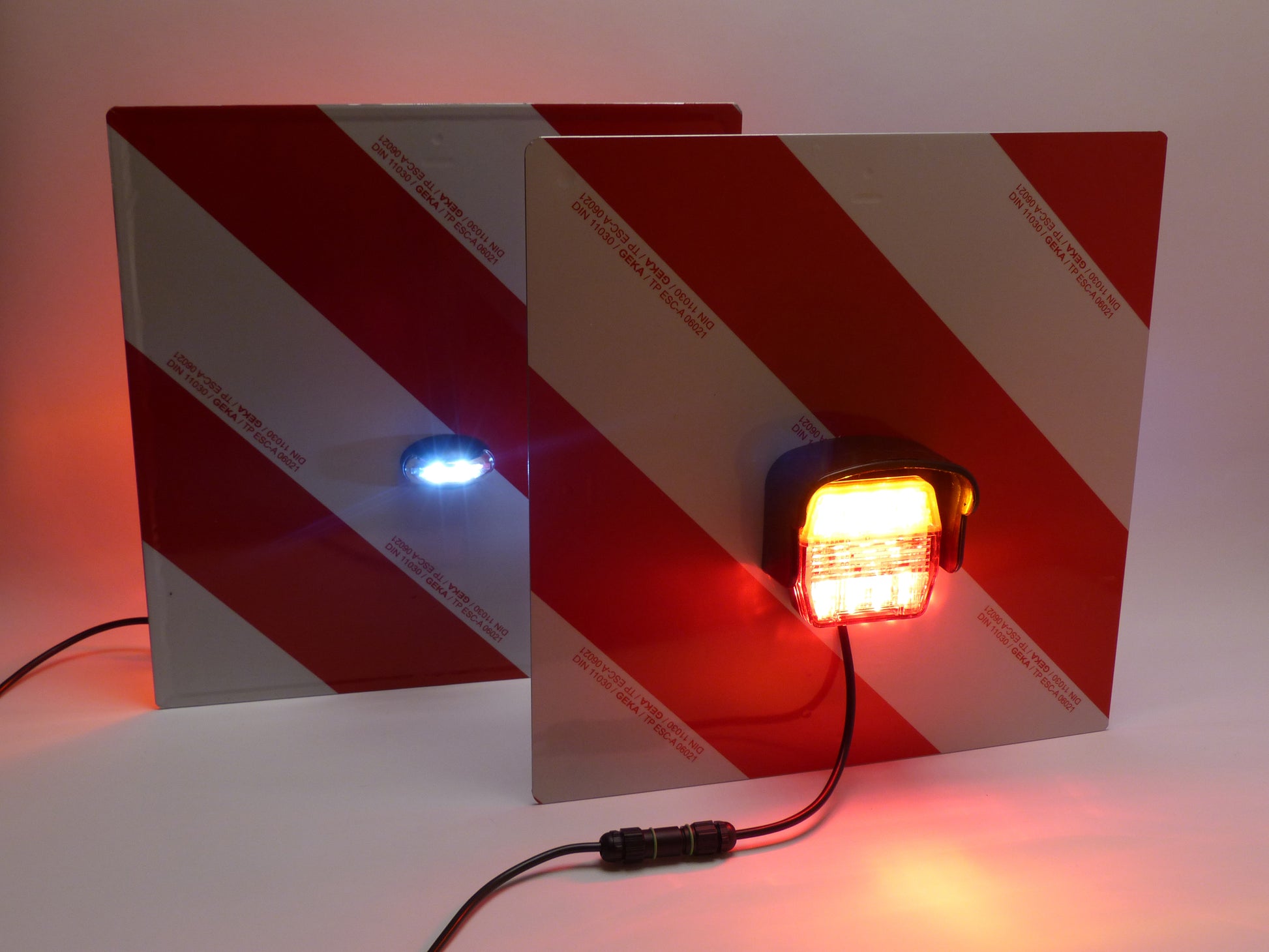

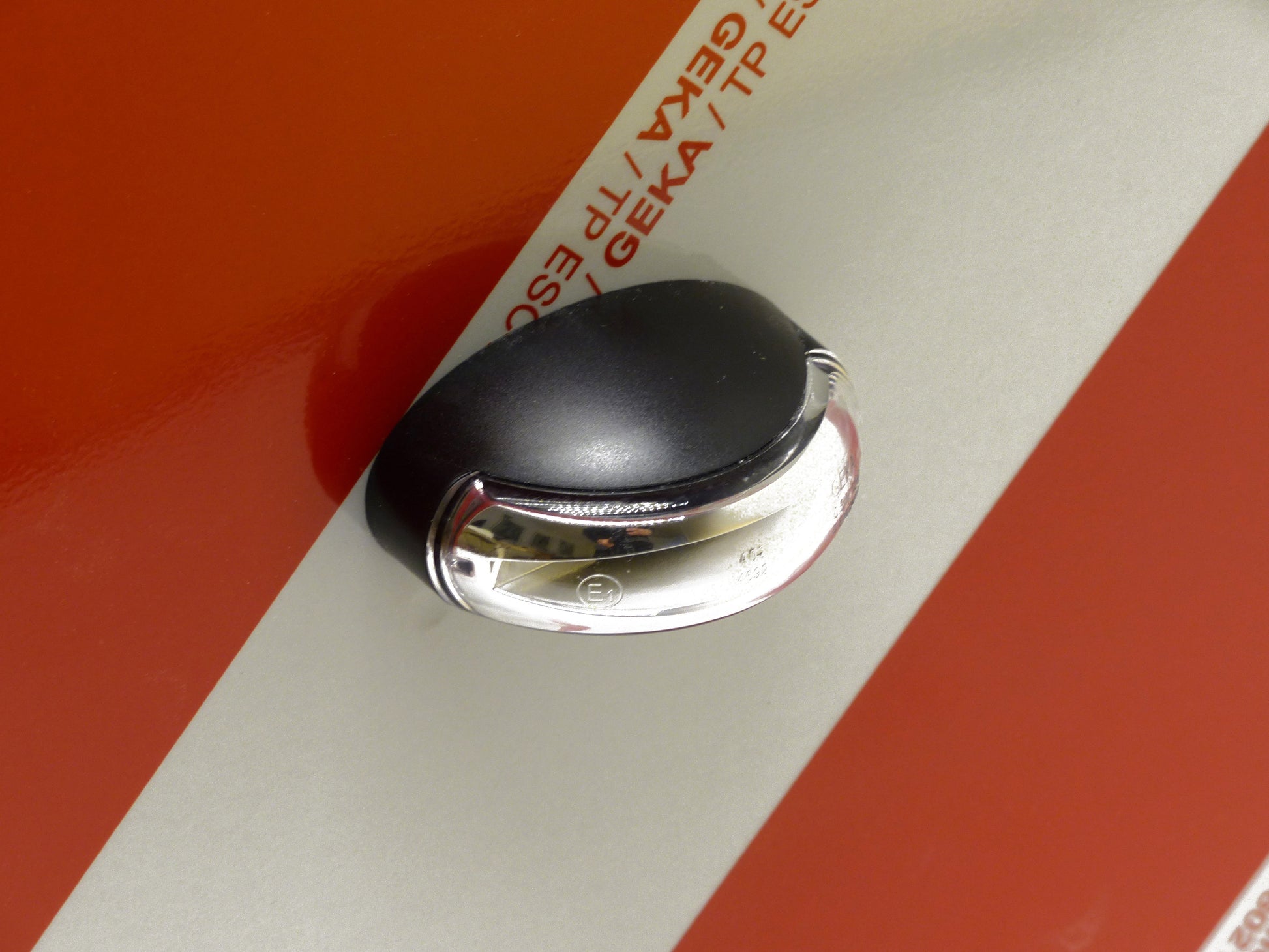

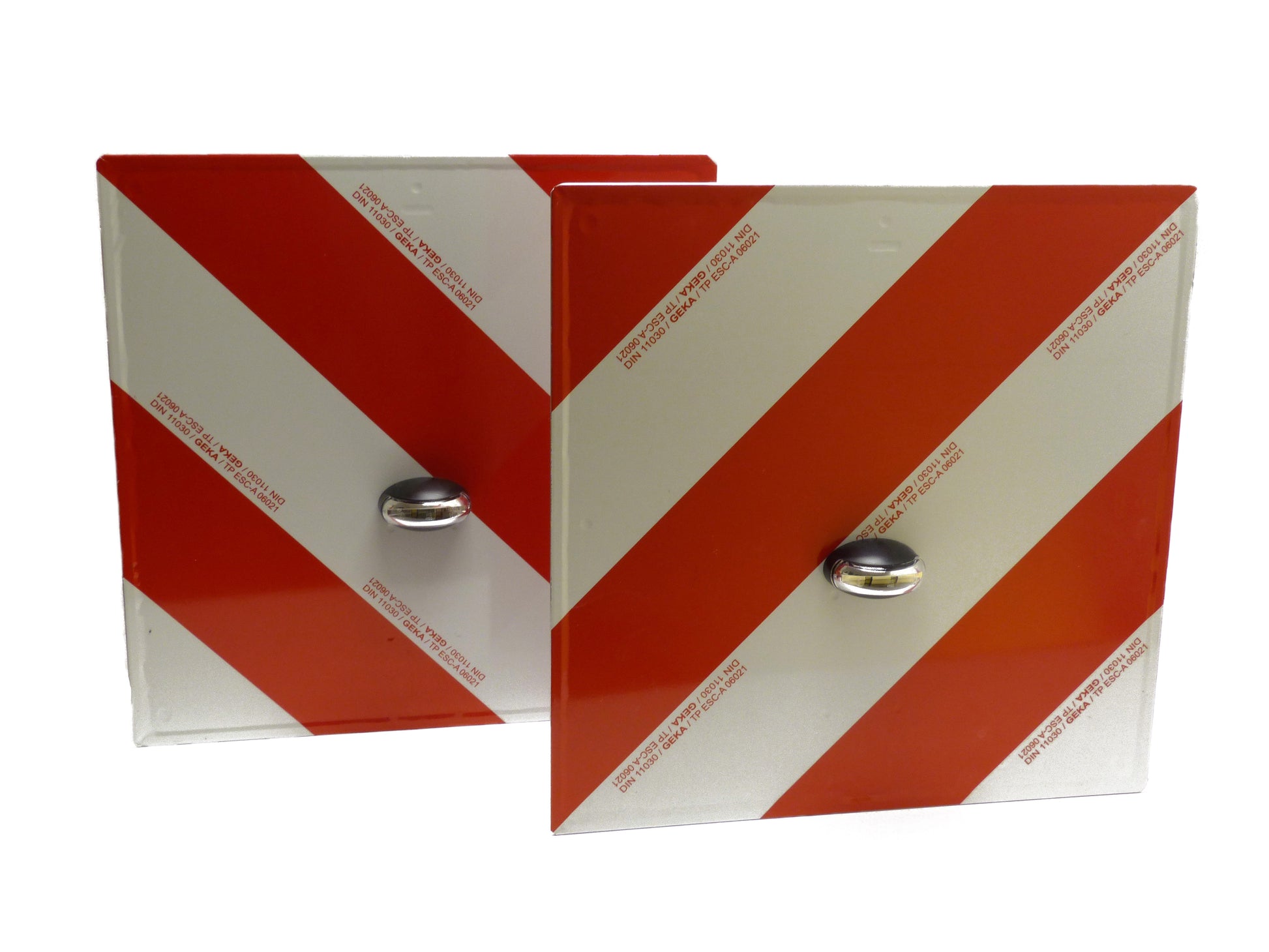

Warning panel set with lighting system for fixed mounting, both sides. Each of the two reflective panels is equipped with one LED front light PL16 and one LED multifunction rear light BBS16LEDA.

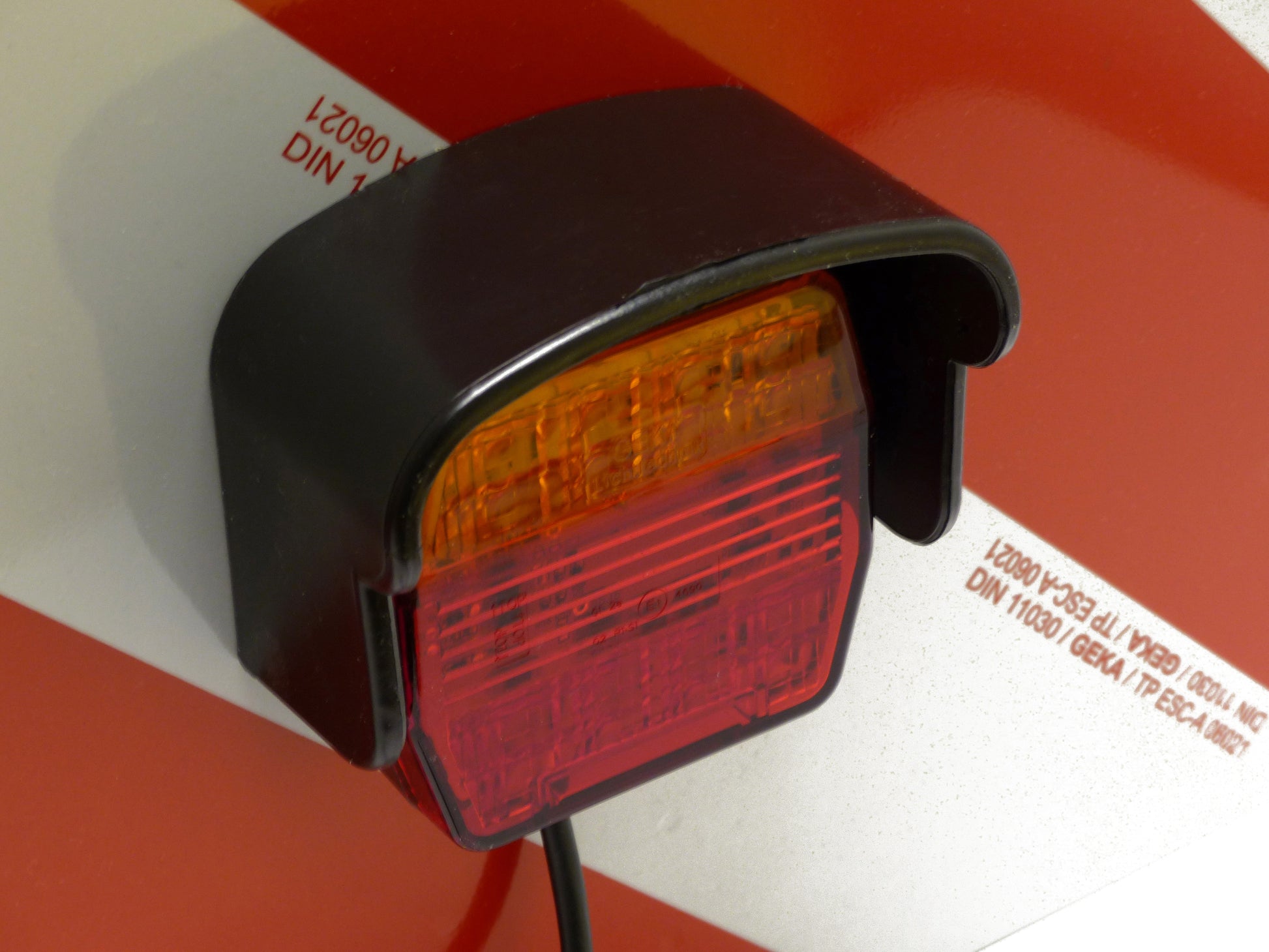

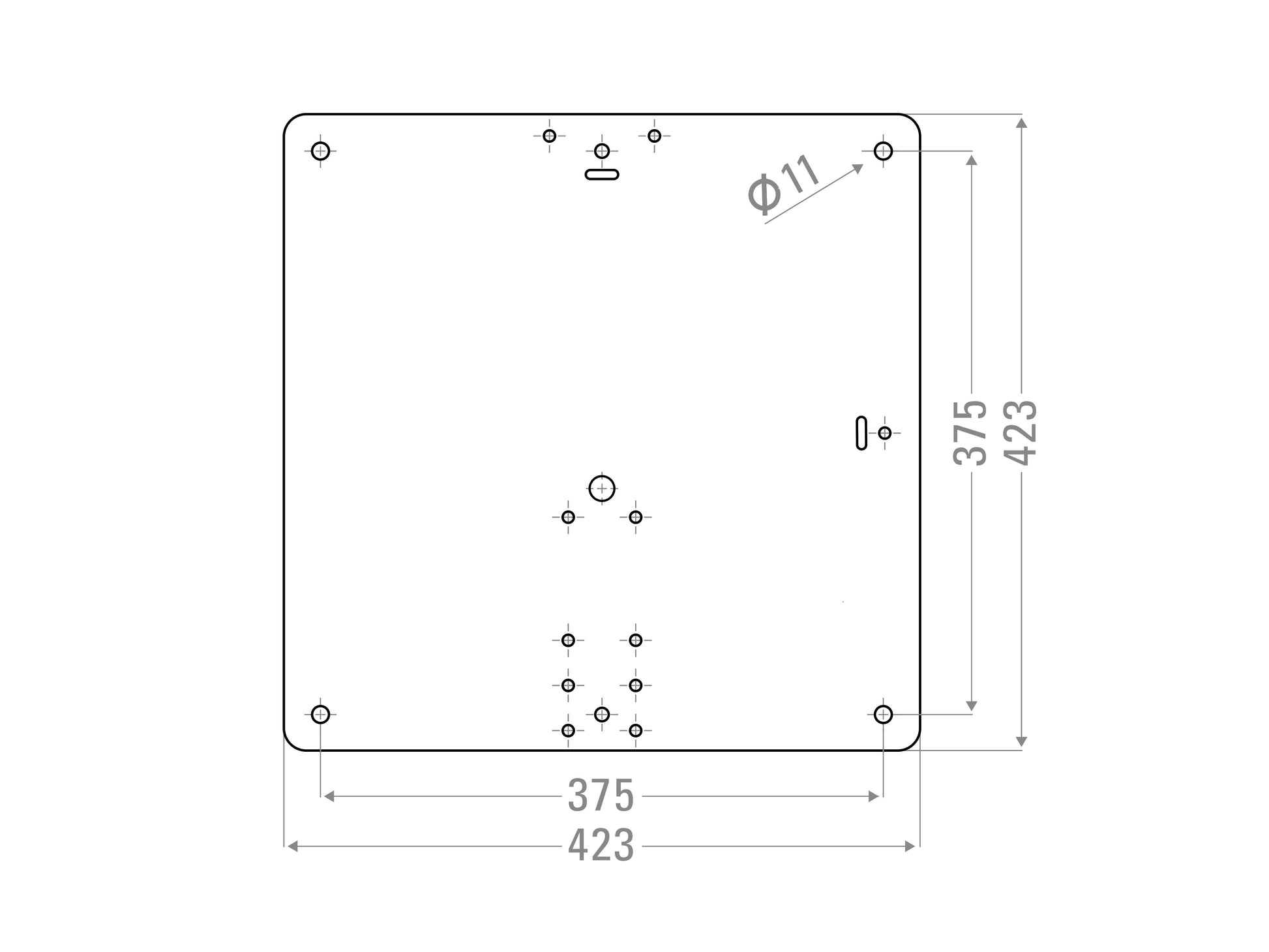

The reflective foil is applied to galvanized, 0.8mm thick sheet metal according to DIN 11030. All sides are flanged. In addition, a protective cover SH95 is installed to provide additional protection for the multifunctional light from weather and mechanical influences.

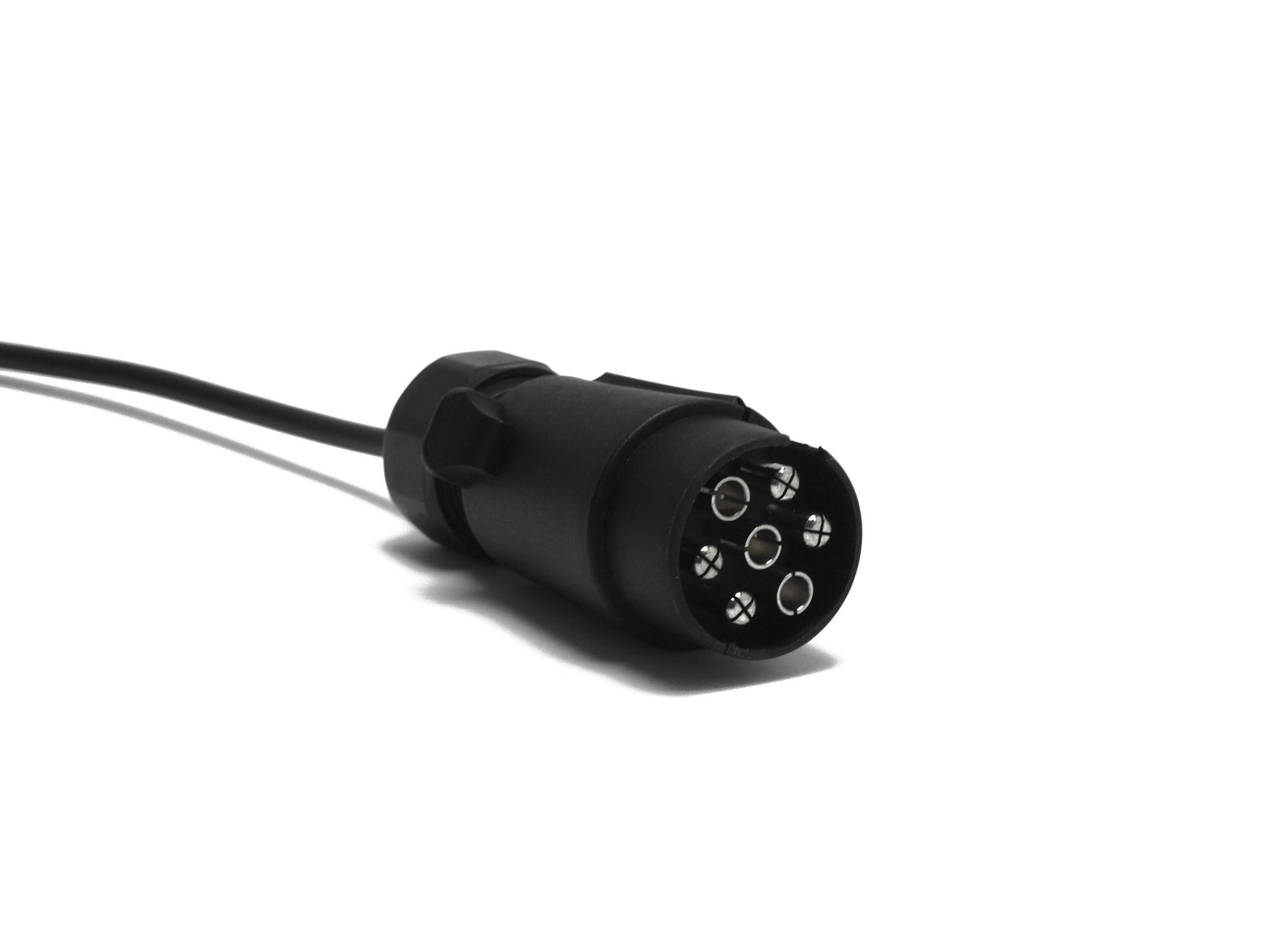

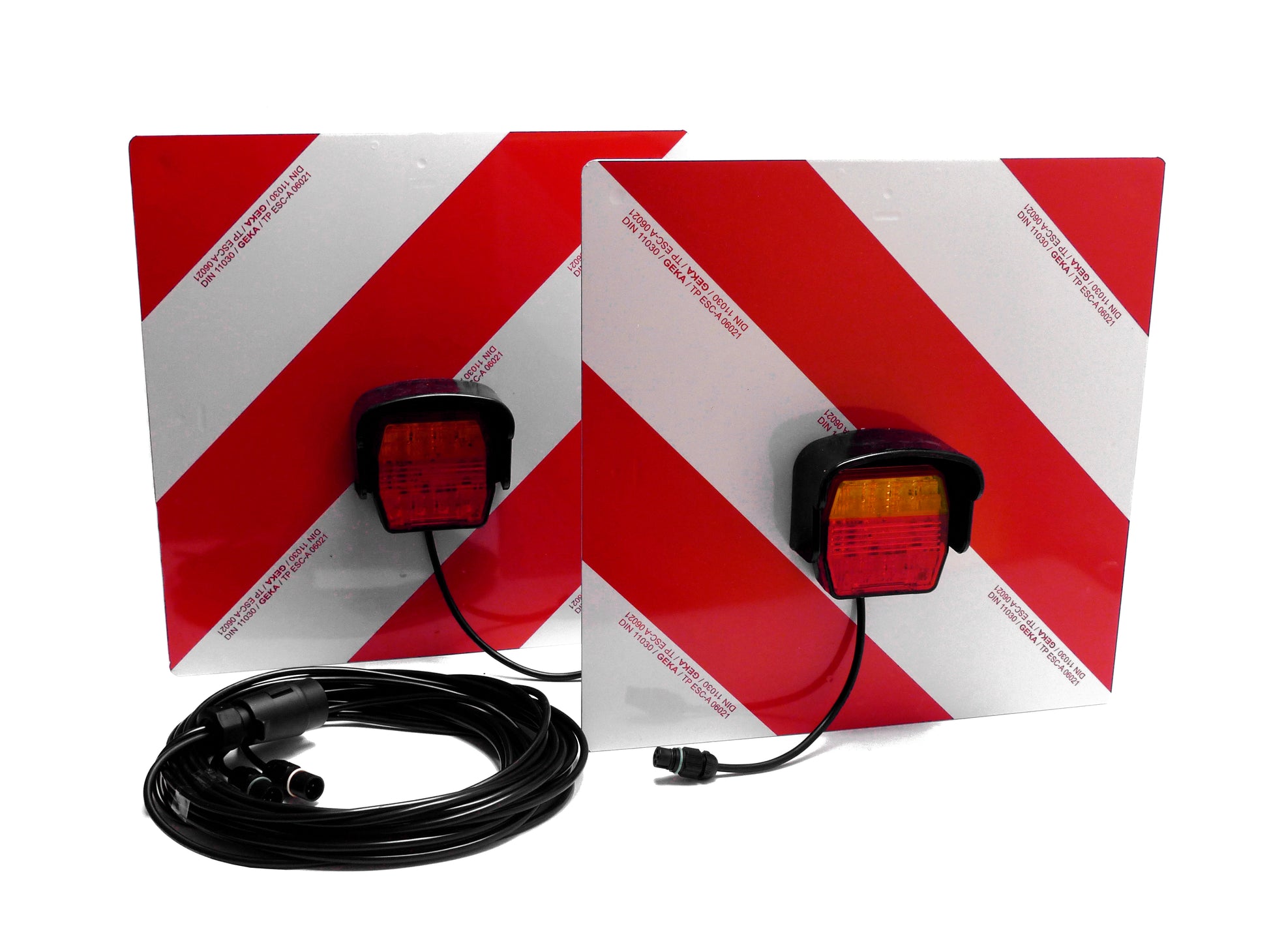

The main cable with 7-pin plug consists of two cables with a length of 6.5m each. The connecting cables of the reflective panel are about 40cm long. All connectors are IP67.
